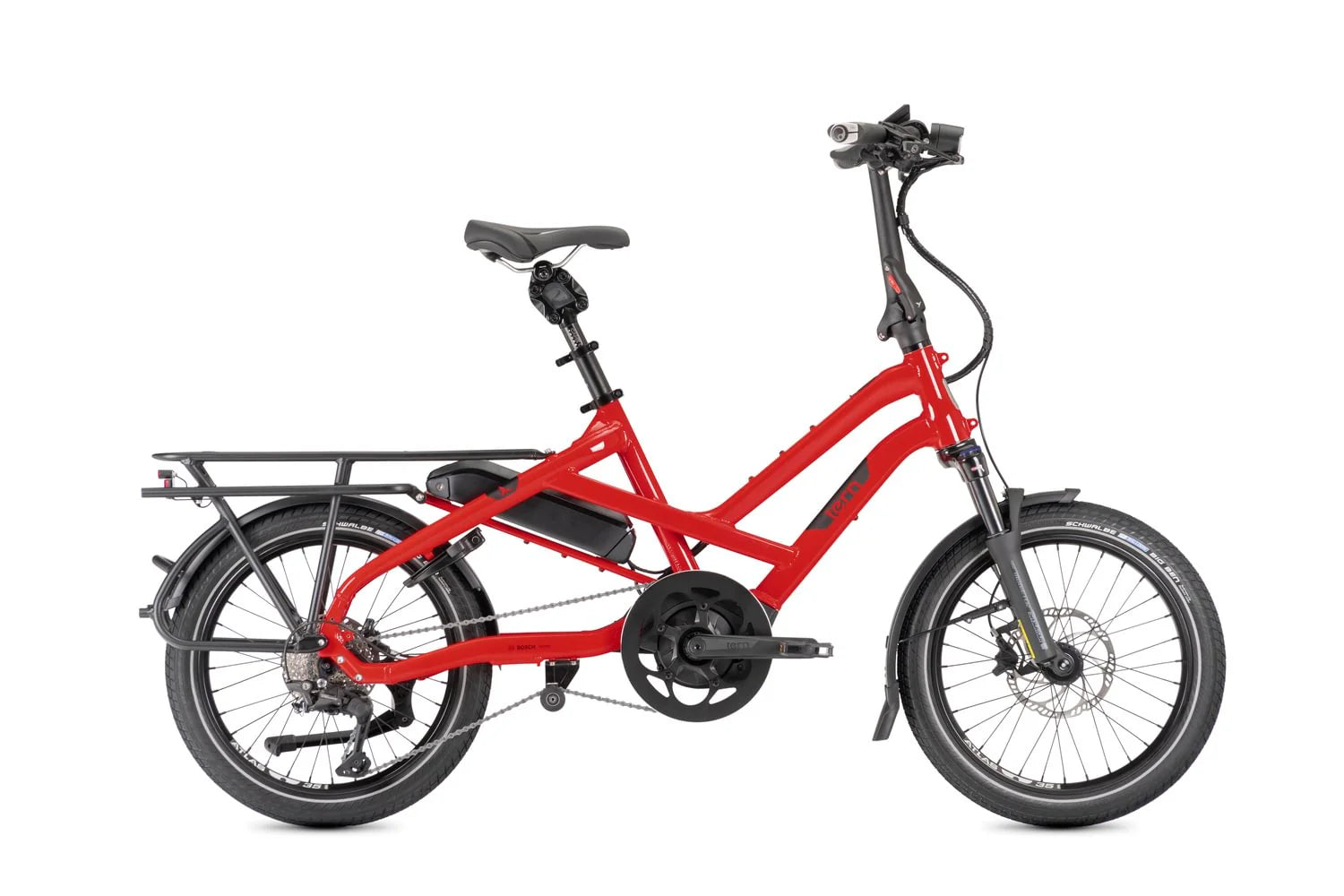

Tern HSD S11

$4,899.00
Color - Dune

What makes it an S11?

  • Class 3 Bosch Performance Line Sport motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
  • Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
  • Kiox 300 color display that automatically activates eBike Lock when removed from the bike
  • 1x11-speed Shimano Deore groupset
  • Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
  • Always-on RearStop Brake Light helps you safely signal stops

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
Motor Bosch Performance Sport, 340% Assist, 75 Nm Torque, Class 3 max speed 28 mph
Battery Bosch PowerPack 545
Display Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Charger Bosch Standard Charger, 4A
Frame Tern HSD, 6061-AL, patented design, EFBE Tri-Test approved: 170 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE Tri-Test approved: 170 kg
Rear Shock Not applicable
Front Brake Magura MT4, hydraulic disc, 180 mm rotor, 160mm rear
Rear Brake Magura MT4, hydraulic disc, 180 mm rotor, 160mm rear
Rear Derailleur Shimano Deore Shadow+
Shift Levers Shimano Deore, 1 x 11 spd
Chain KMC 11 spd, EPT corrosion resistant coating
Cassette 1-36T, 11 spd
Crankset Tern HSD custom
Chain Ring Spec not provided
Chain Guard Custom Bash Guard
Rims Tern Atlas H, wide 35 mm
Front Hub Novatec, Thru-axle, sealed bearings
Rear Hub Novatec, sealed cartridge bearing, disc
Front Tire Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Rear Tire Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
Handlebar Tern Sweep, 6061-AL, Tern Andros adapted
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
Grips Ergon
Saddle Tern Upright by Velo
Seatpost Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Pedals Urban with non-slip surface, sealed bearings
Front Light Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear Light RearStop Brake Light, Always on
Kickstand Ursus, rear mount
Rear Carrier Atlas H rack, Atlas Rack Mount, 6 point mounting
Fenders SKS, stainless hardware
Bell Aluminum
Lock ABUS 5650L, keyed-alike with Bosch battery
Mirror Not applicable
