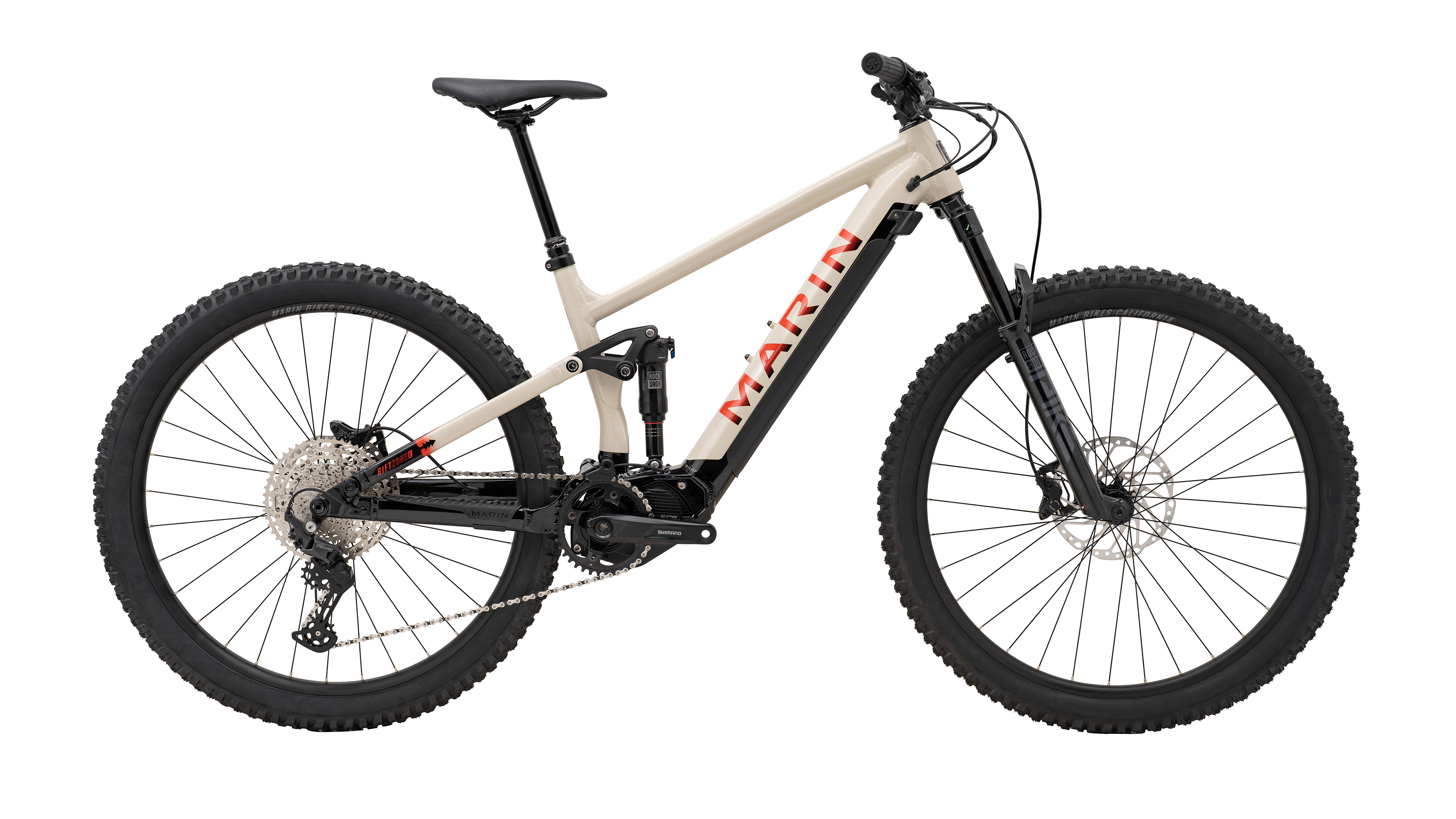

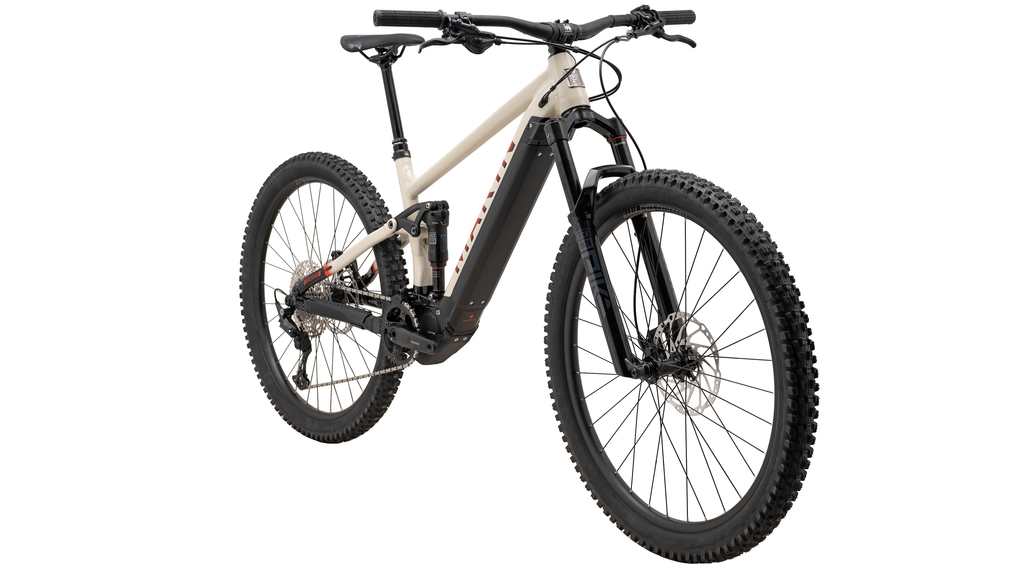

Marin Rift Zone E1

$4,599.00 $4,999.00
by Marin
Size

"MOUNTAIN BIKING WITH A BOOST

THE JACK-OF-ALL-TRADES MTB, ELECTRIFIED

MAXIMIZING FUN"

The all-new Rift Zone E1 is the result of us taking our award-winning trail 29” platform and engineering it for electrification. Rear wheel travel is increased by 10mm, and the chainstays are 10mm longer in this application, and Shimano’s proven Steps platforms help propel the rider up the trail.

Specifications

 Frame: All New Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Suspension Fork: RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

Rear Suspension: RockShox Deluxe Select+, Compression and Rebound Adjustment, 210x55, 25xM8 Lower and Upper Mount

Rims: Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

Hub, Rear: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

Hub, Front: Shimano FH-TC500, 110x15mm, Centerlock , 32H

Spoke, Nipples: 14g Stainless Steel

Tires: Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing

Tires Rear: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing

Derailleur, Rear: Shimano Deore, Direct Attachment, 11-Speed, SGS

Shift Lever: Shimano Deore, 11-Speed, I-Spec EV

Motor: Shimano EP801, 250W, 85Nm

Crankset: Shimano EM600, 160mm Length, 38t Chainring

Chain: KMC X-10E, Silver

Cassette: SunRace 11-Speed, 11-51T

Brakes: Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor, w/ Bolt on Speed Sensor

Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem: Marin 3D Forged Alloy, 35mm

Grips: Marin Grizzly Lock On

Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Seatpost: TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Saddle: Marin eMTB

Pedals: Marin MTB Plastic

Battery: BBT-EN806 Internal 630Wh

Display: Shimano SC-E600

Switch: SW-EN600L Left Hand Switch for Assist Mode Change

Extras: Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, 2A; Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle

Range, Charging Time: 19-50 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)

Geometry

Size

 S M L XL
Stack 606.98 614.04 625.1 634.16
Reach 445 465 485 515
Headtube Angle 64.5° 64.5° 64.5° 64.5°
Headtube Length 100 110 120 130
Seattube Angle 77° 77° 77° 77°
Seattube Length 390 400 425 435
Toptube Effective 585.13 607.22 629.32 661.41
BB Height 353.5 353.5 353.5 353.5
BB Drop 32 32 32 32
Chainstay 440 440 440 440
Wheelbase 1198.29 1222.52 1246.74 1280.97
Standover Height 693.65 696.01 709.94 719.93
Fork Offset 44 44 44 44
Seatpost Diameter 30.9 30.9 30.9 30.9
Handlebar Width 780 780 780 780
Stem Length 35 35 35 35
Crank Length 160 160 160 160

All lengths in millimeters

Sizing

How do you know what size of bike you should buy?

A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.

For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.

Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
