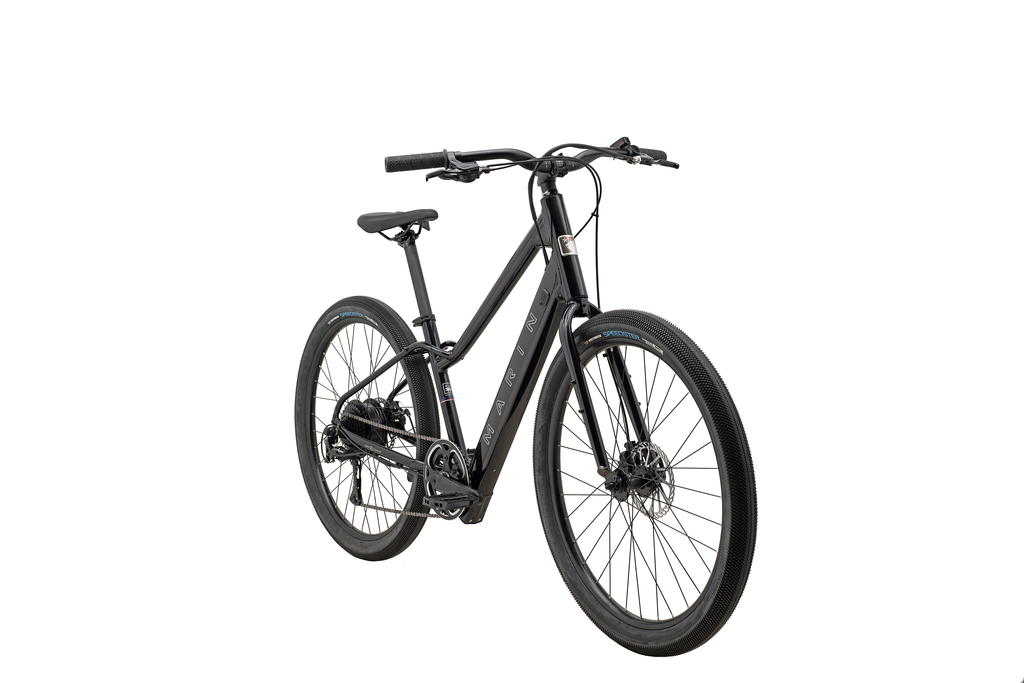

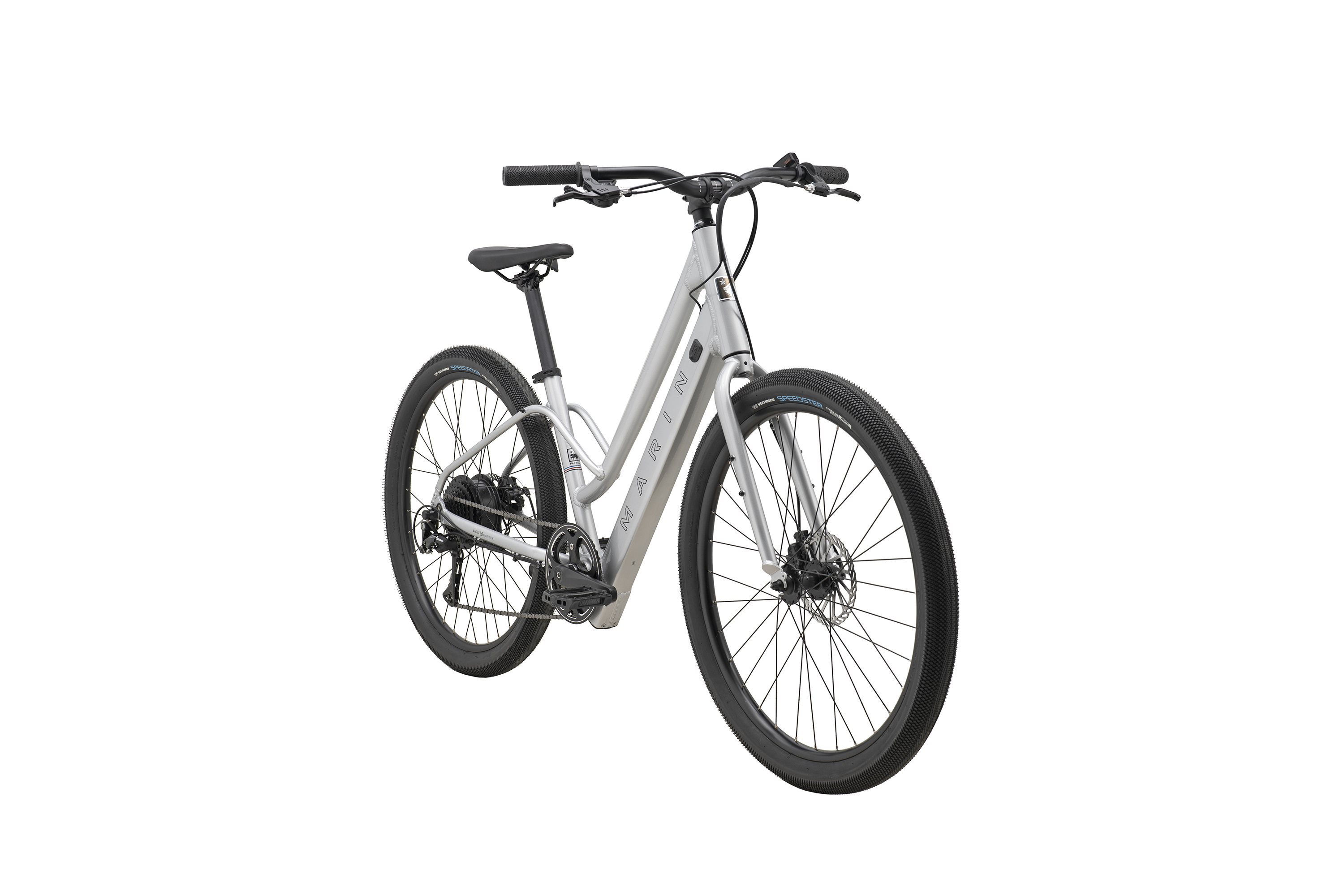

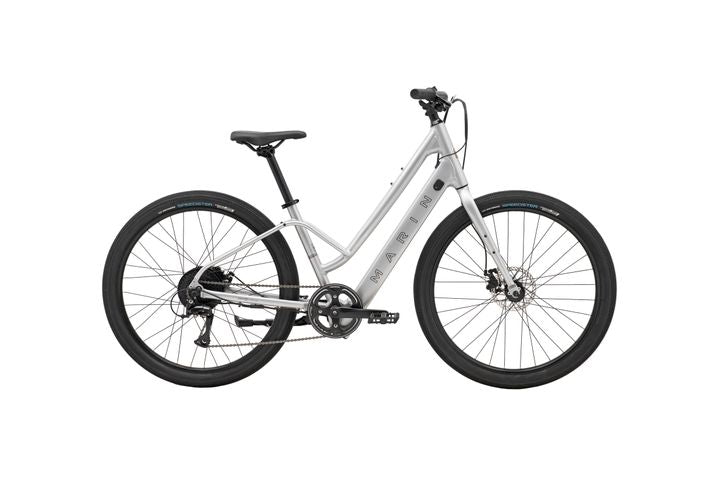

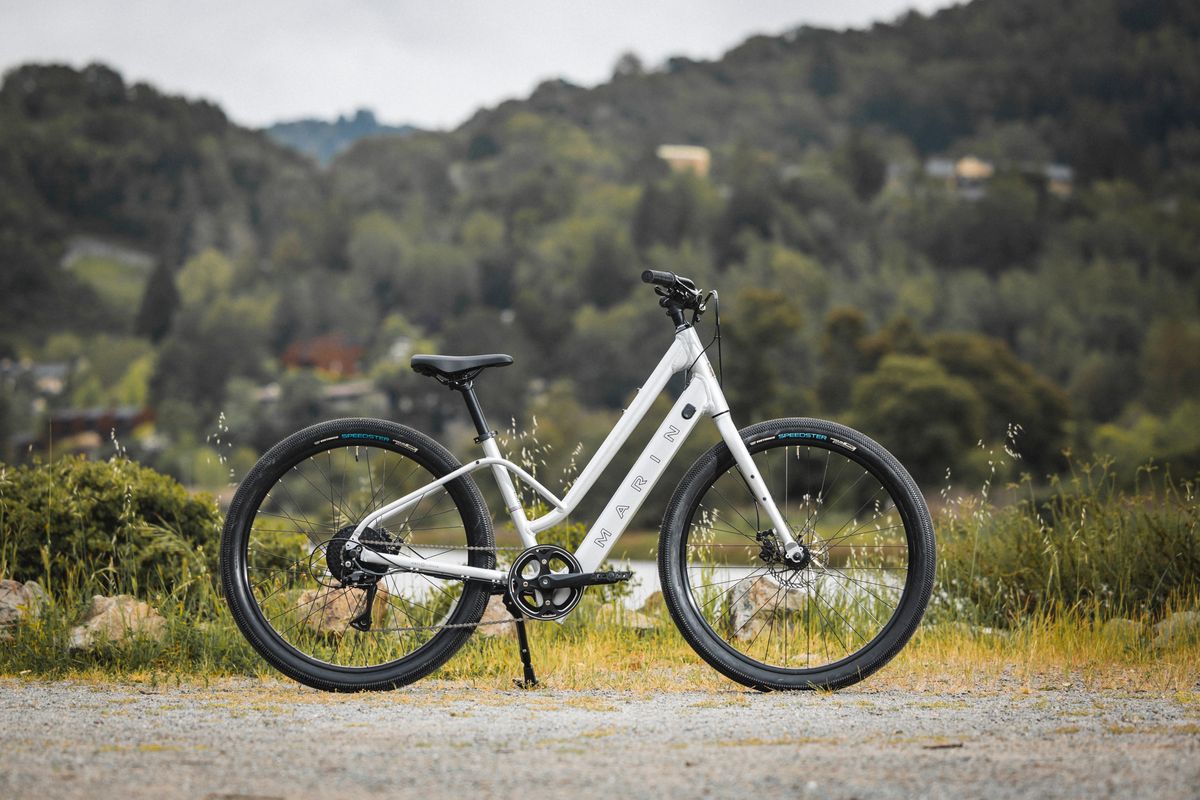

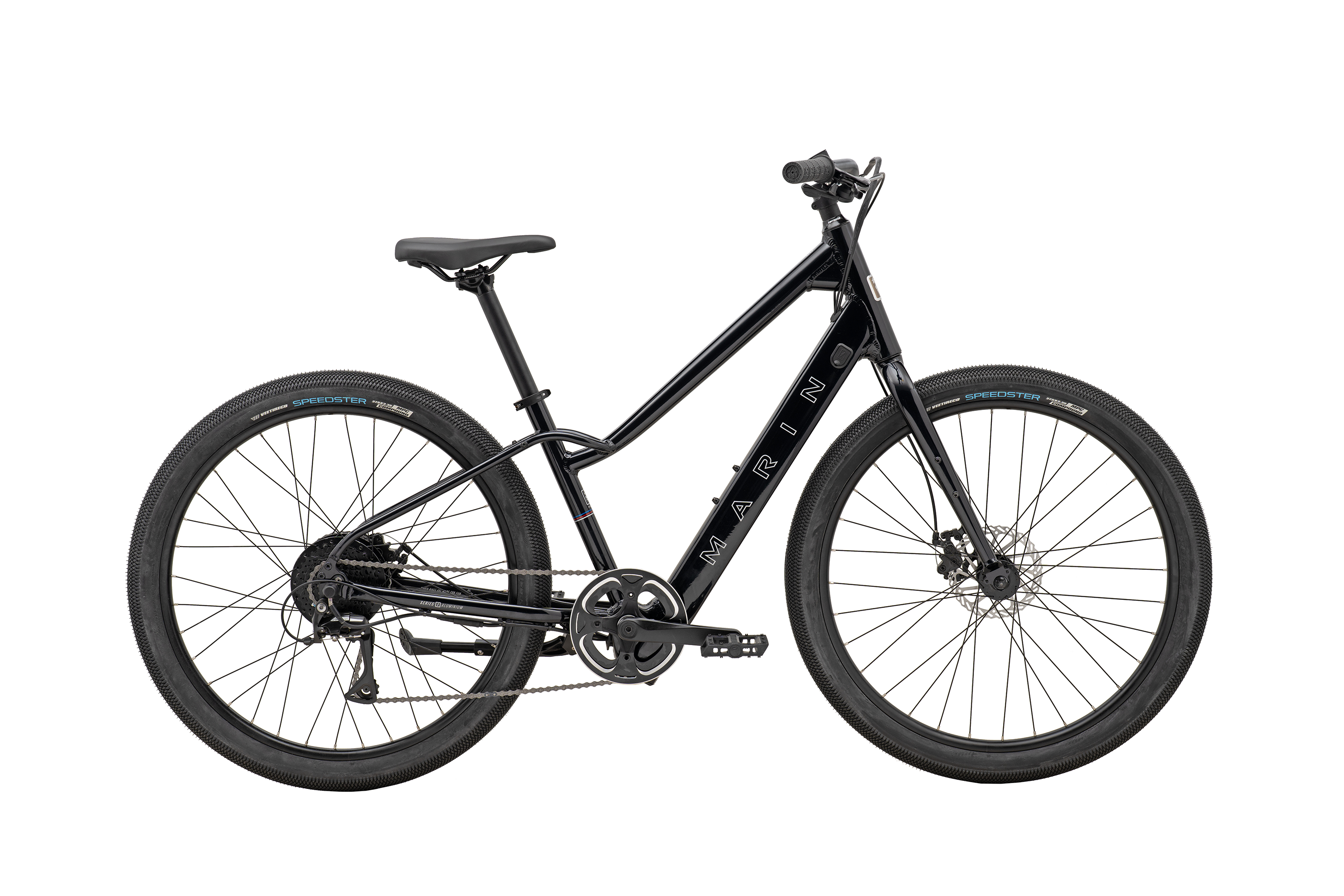

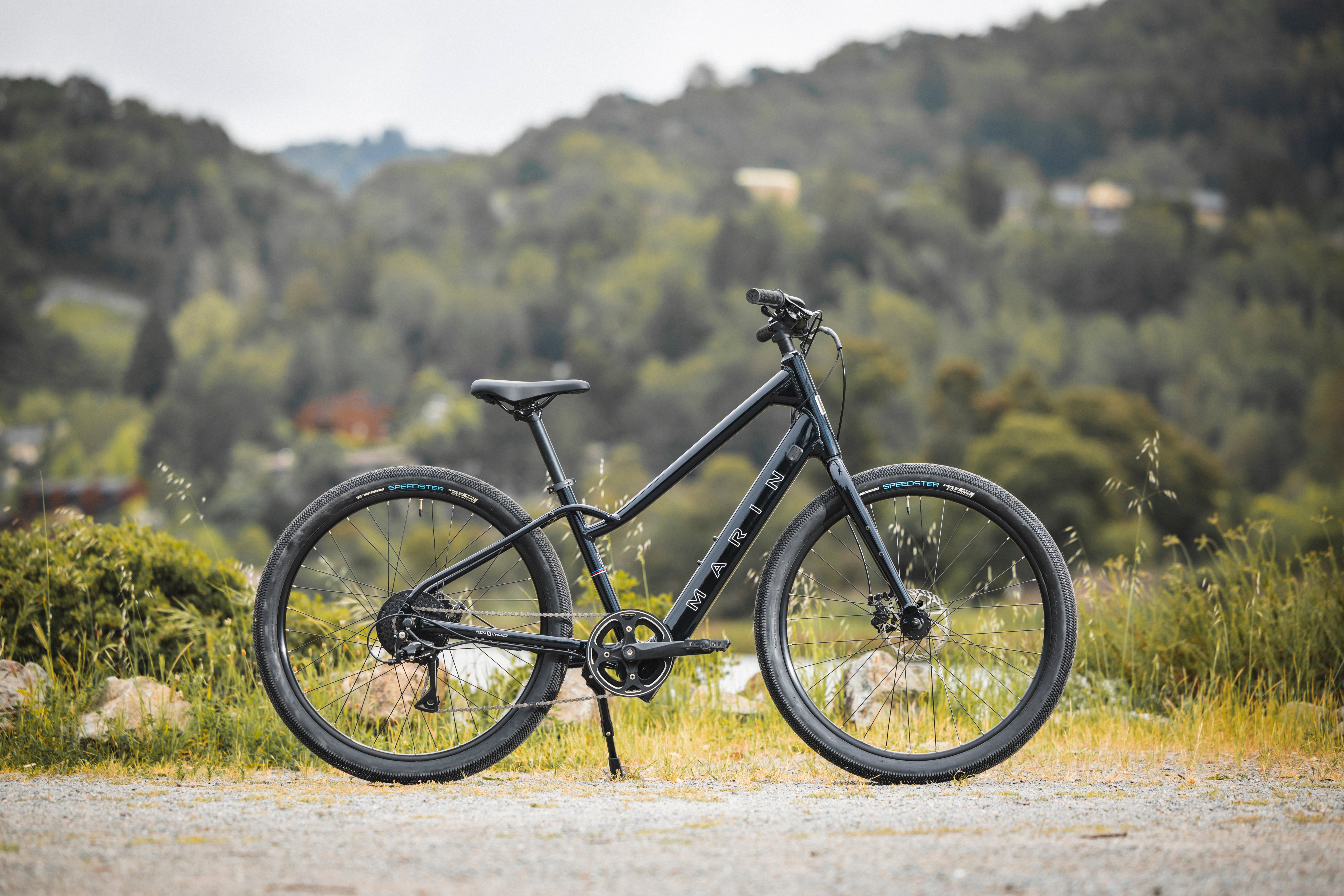

Marin's renowned Stinson comfort bike, now with a boost. The Stinson E takes all the beloved features of the standard model, but delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.
KEY FEATURES
40nm Bafang Hub Motor - 340wh Battery - Range up to 60 miles
Specifications
| Frame: Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts |
|
Fork: CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets |
|
Rims: Marin Aluminum Double Wall, Disc Specific
|
|
Hub, Rear: Bafang 250 Watt Hub Motor, 40Nm, 36H
|
|
Hub, Front: Forged Aluminum Alloy, 32H
|
|
Spoke, Nipples: 14g Stainless Steel
|
|

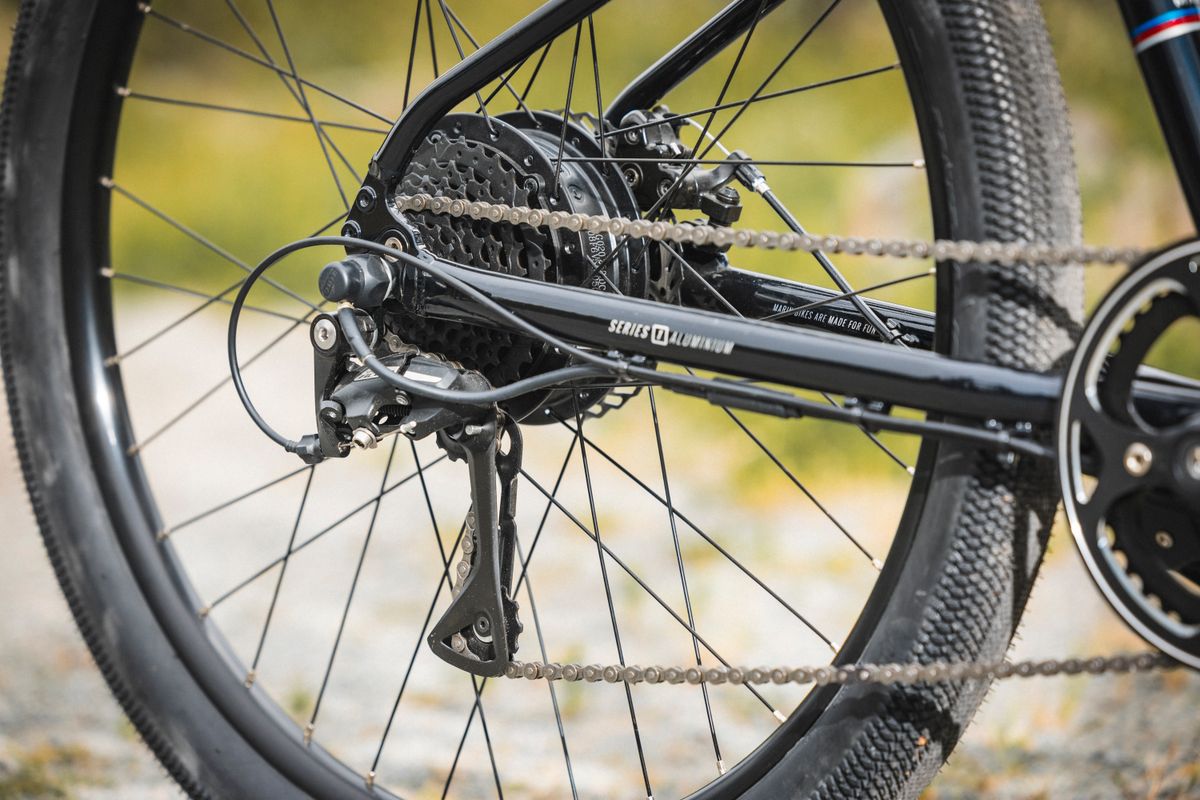

Derailleur, Rear: Shimano Acera, 8-Speed
|
|
Shift Lever: Shimano Altus 8-Speed RapidFire
|
|

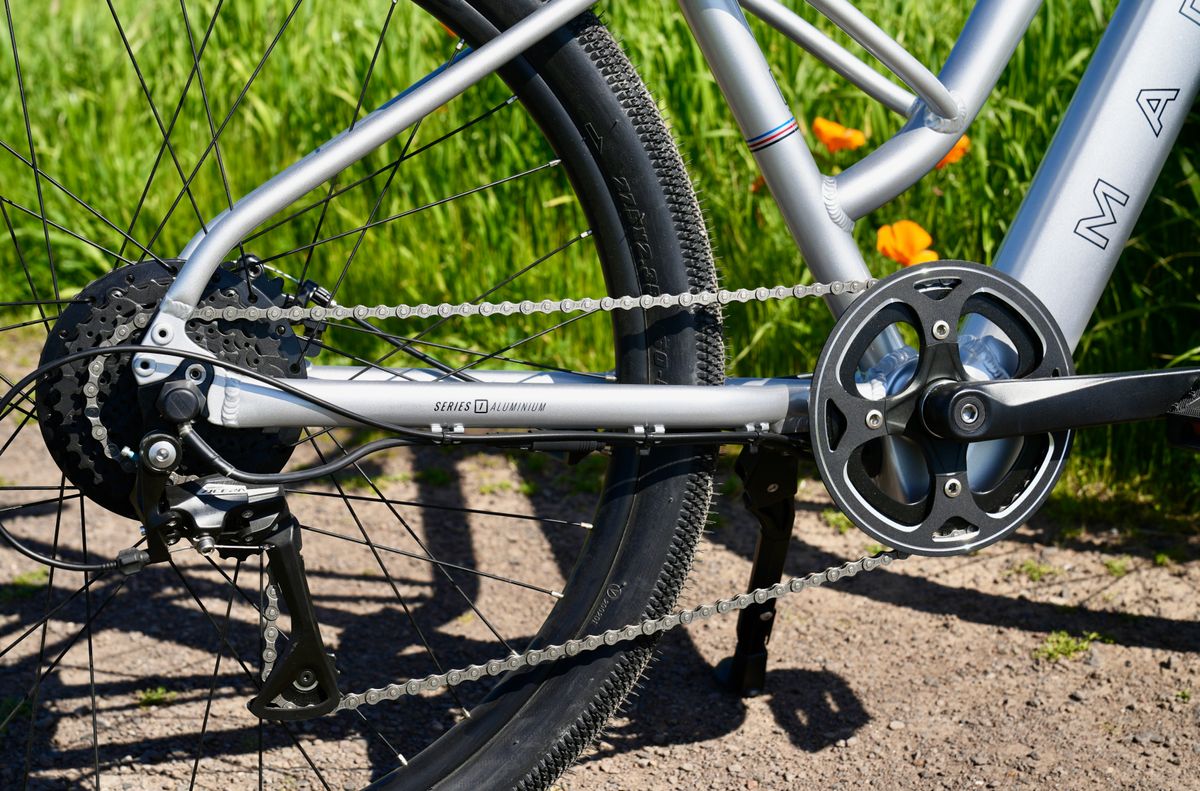

Crankset: Alloy Crank, Steel 38T Chainring, Ring Guard
|
|
Bottom Bracket: Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
|
|
Chain: KMC Z8
|
|
Cassette: SunRace 8-Speed, 11-34T
|
|
Brakes: Tektro MDM280 Mechanical Disc, 160mm Rotor
|
|
Handlebar: Marin Alloy, 25mm Rise, 18˚ Backsweep
|
|
Stem: Marin Alloy
|
|
Grips: Marin County
|
|
Headset: FSA, TH No.10P
|
|
Seatpost: Marin Alloy, 30.9mm
|
|
Saddle: Marin Alloy, 30.9mm
|
|
Pedals: Marin Comfort
|
|
Battery: Bafang 340Wh, 36V, In-tube
|
|

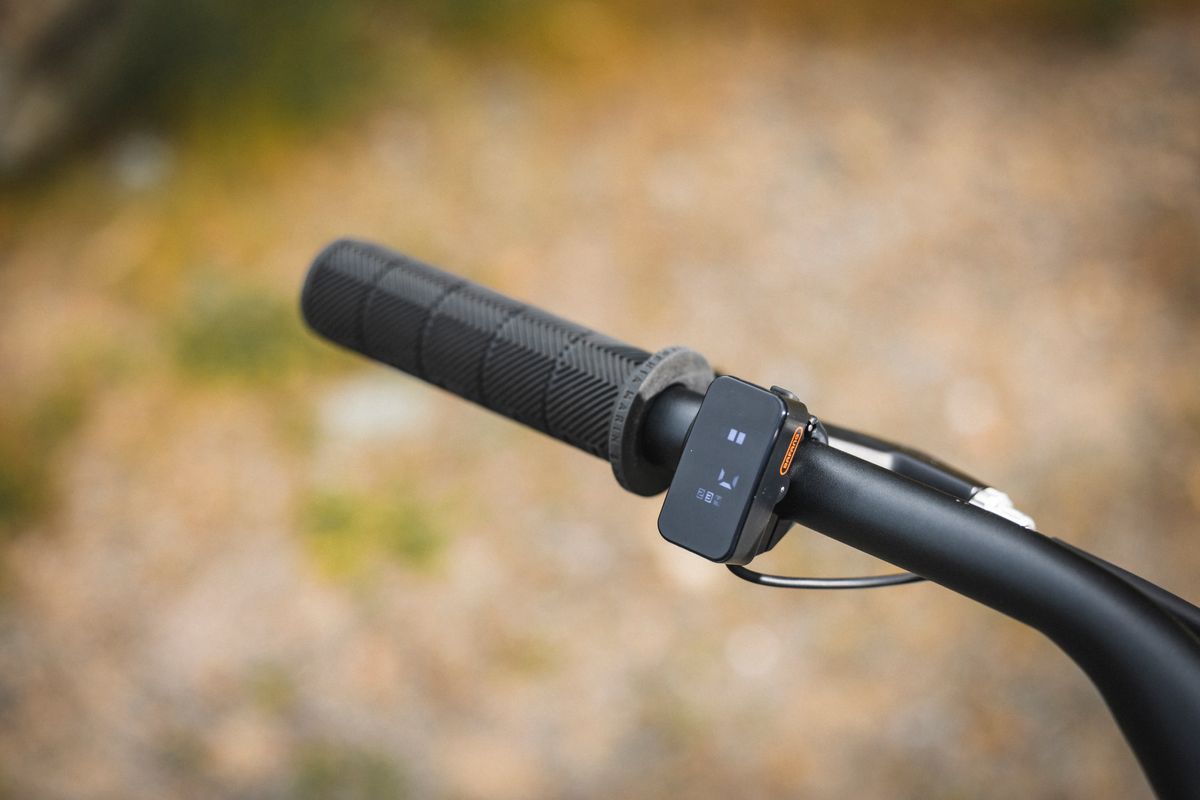

Controller: Handlebar Mount LCD Switch & Display
|
|
Kickstand: Alloy Center Mount
|
|
Range, Charging Time: 19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
|

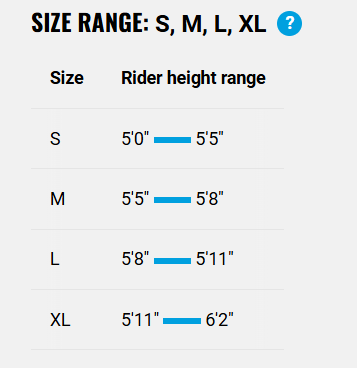

How do you know what size of bike you should buy?
A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.
For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.

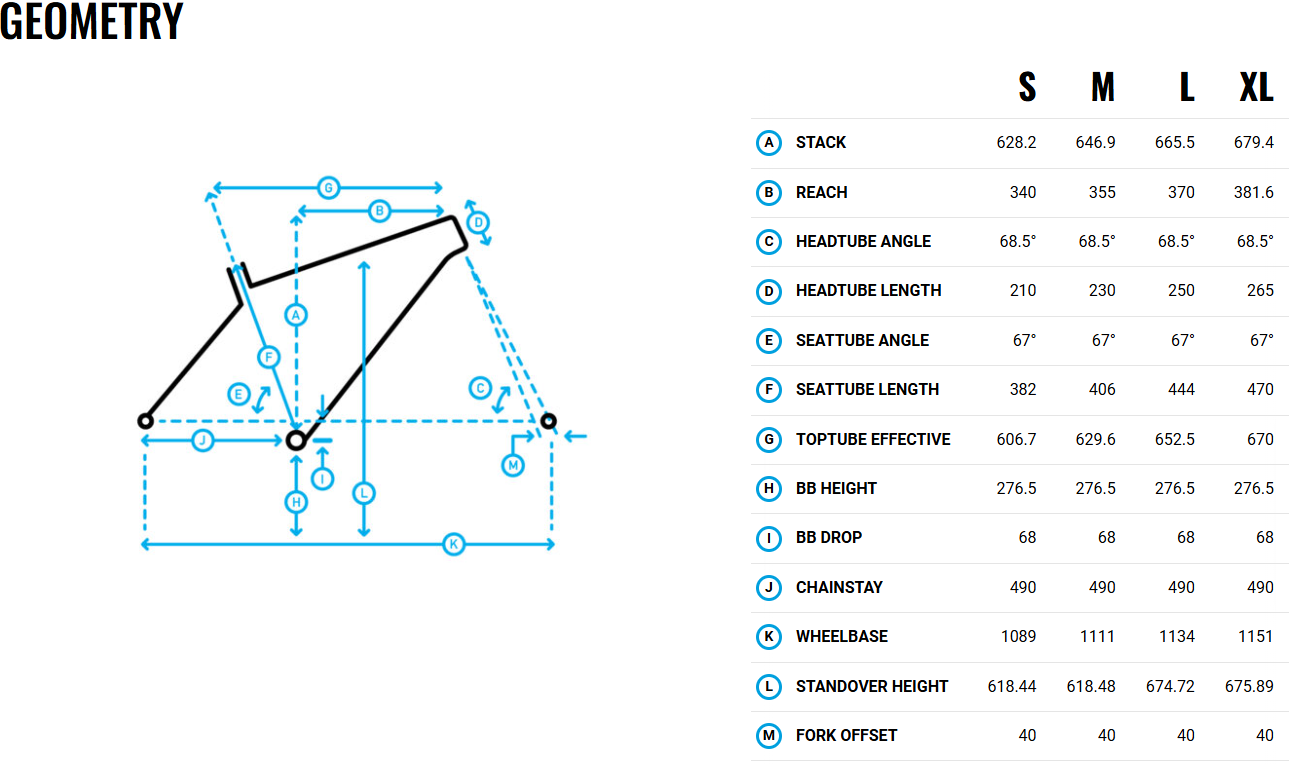

Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
