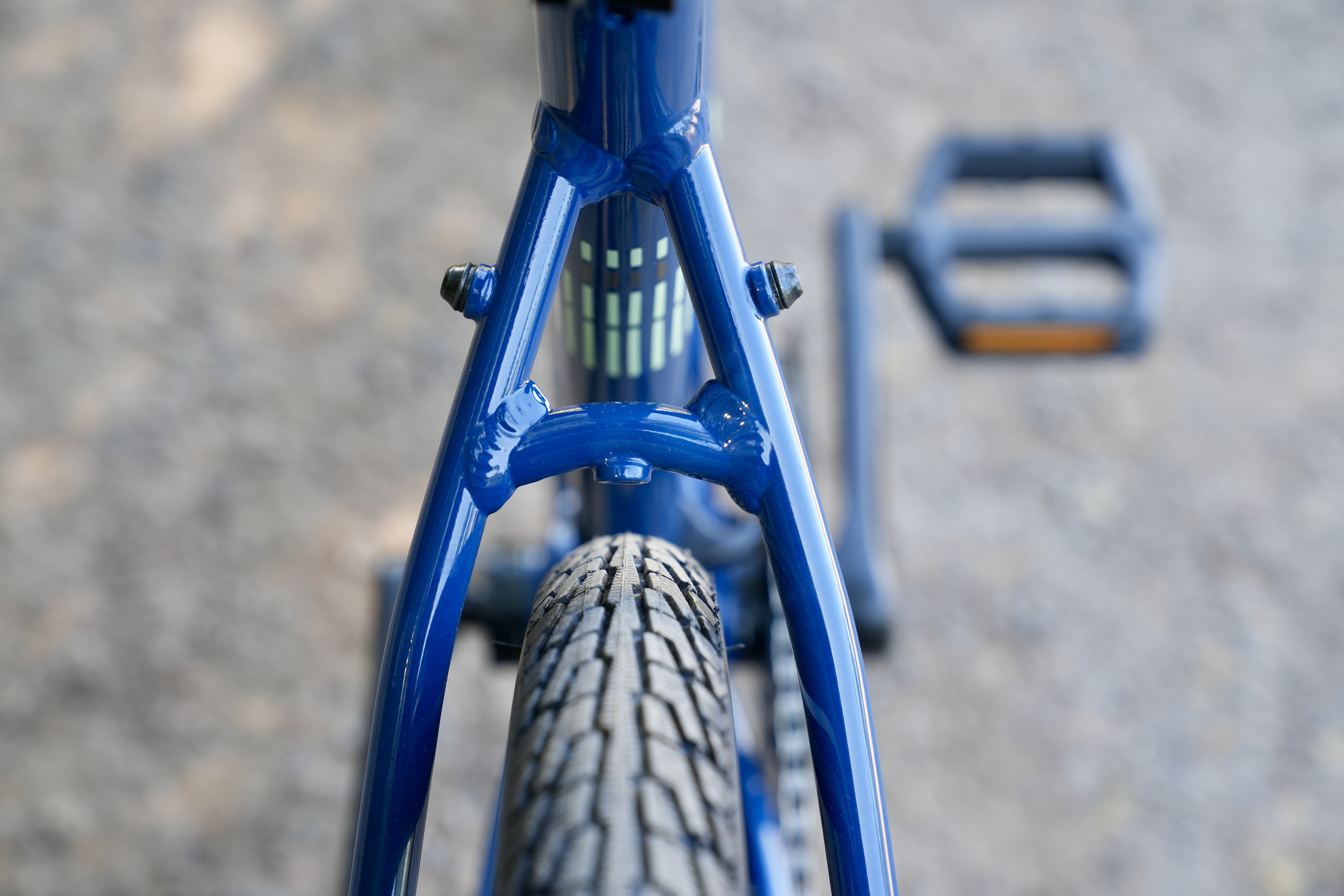

| Frame: Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts
|
|
Fork: 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
|
|
Rims: Marin Aluminum Double Wall, Disc Specific
|
|

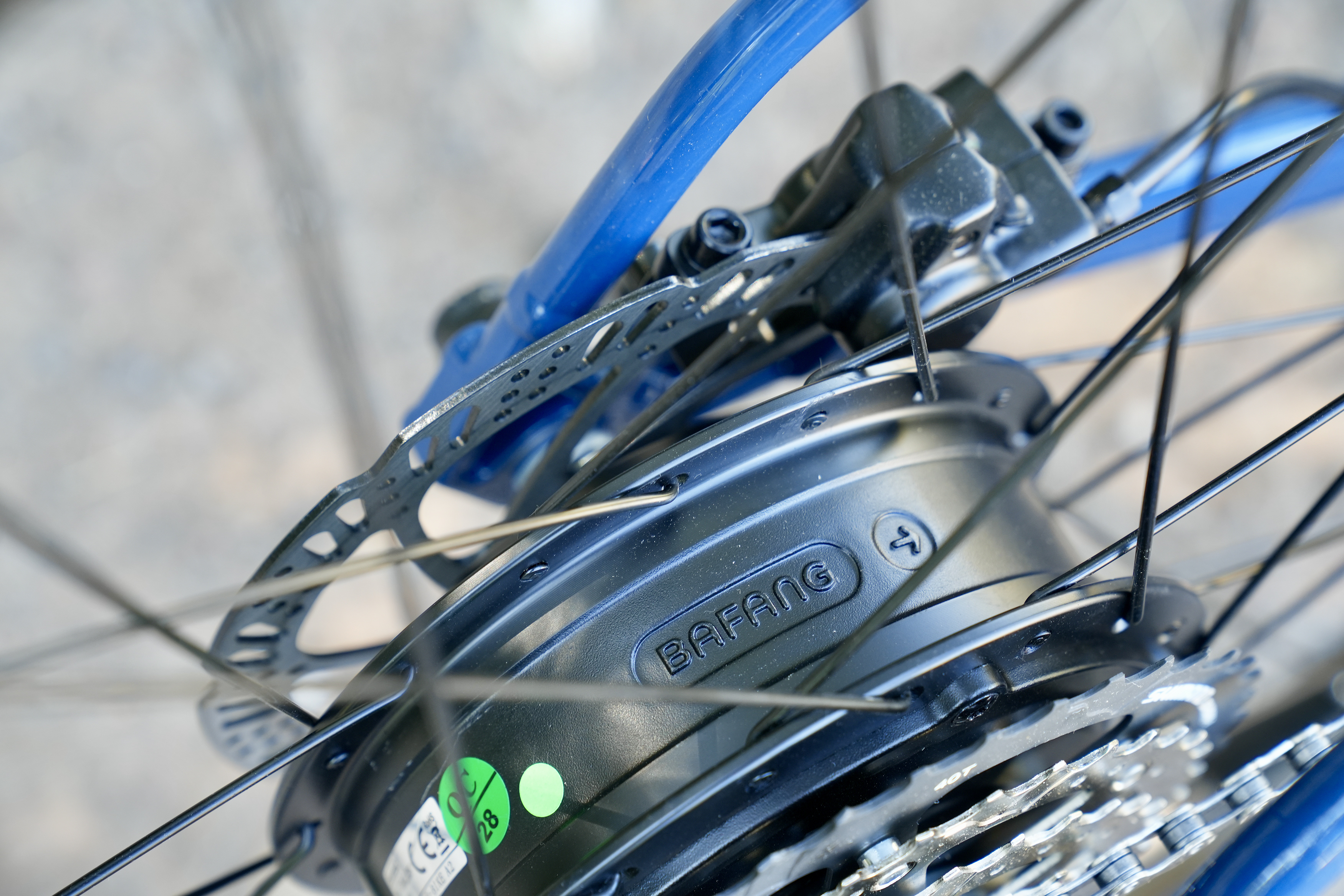

Hub, Rear: Bafang 250 Watt Hub Motor, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world
|
|
Hub, Front: Forged Aluminum Alloy, 32H
|
|
Spoke, Nipples: 14g Stainless Steel
|
|
Tires: Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead
|
|
Derailleur, Rear: Shimano Acera, 8-Speed
|
|
Shift Lever: Shimano Altus 8-Speed RapidFire
|
|
Crankset: Alloy Crank, Steel 42T Chainring, Ring Guard
|
|
Bottom Bracket: Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
|
|
Chain: KMC Z8
|
|
Cassette: Shimano HG-400, 8-Speed, 11-40T
|
|

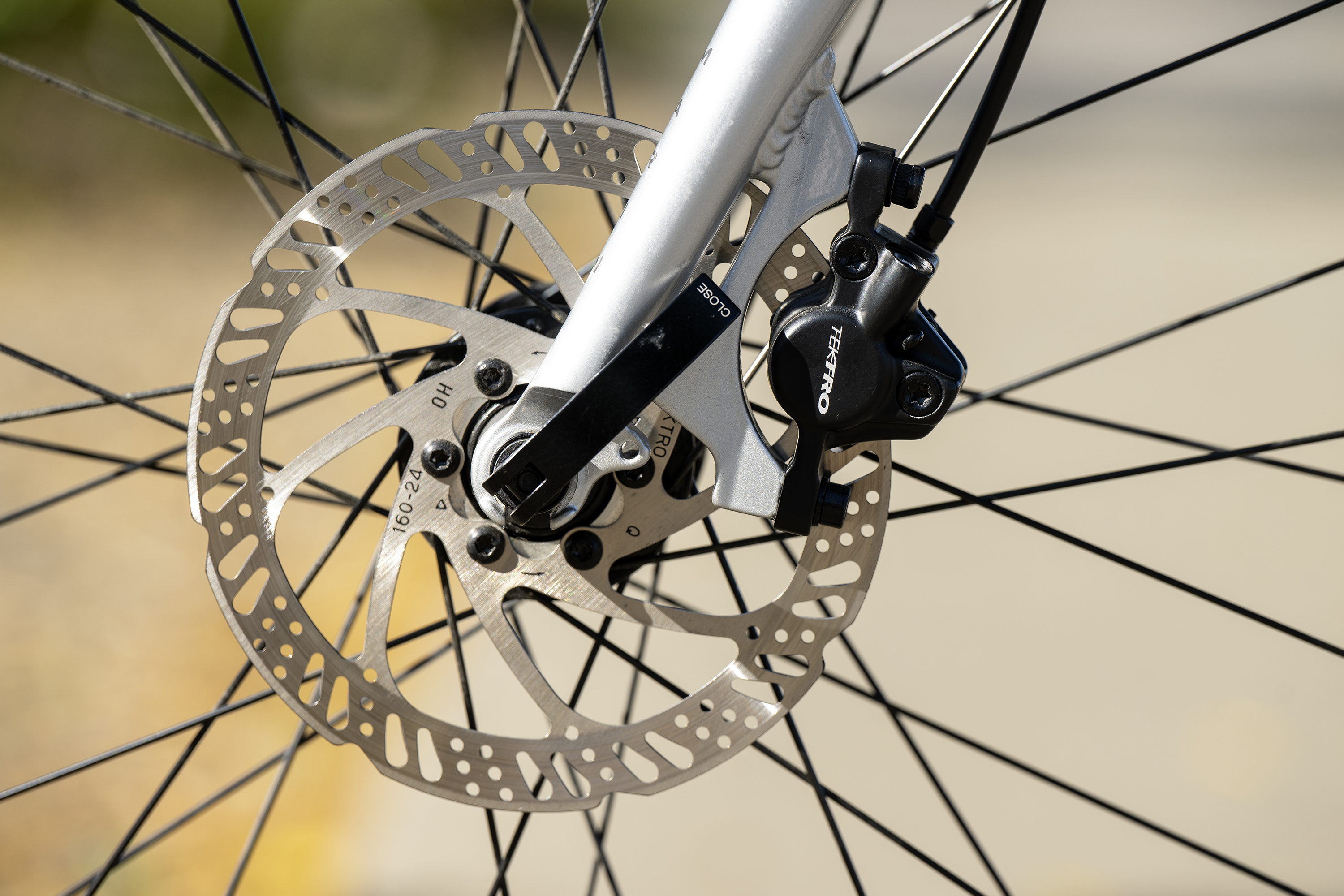

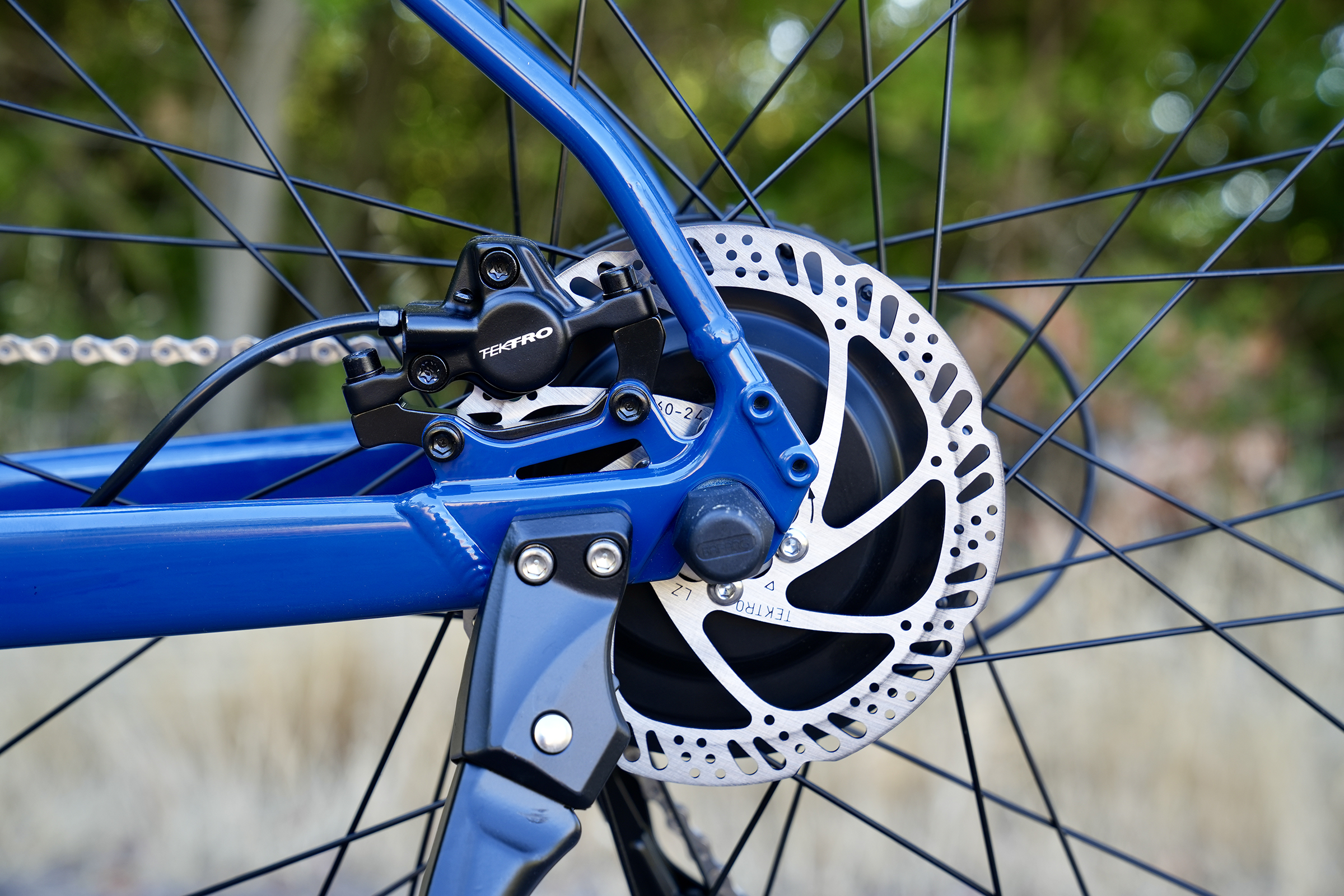

Brakes: Tektro HDM-275 Hydraulic Disc, 160mm Rotor
|
|
Handlebar: Marin Alloy Flat
|
|
Stem: Marin Alloy
|
|
Grips: Marin County
|
|
Headset: FSA, Orbit CE No.8B
|
|
Seatpost: Marin Alloy, 27.2mm
|
|
Saddle: Marin Fitness
|
|
Pedals: Marin Oso OEM Nylon Platform
|
|

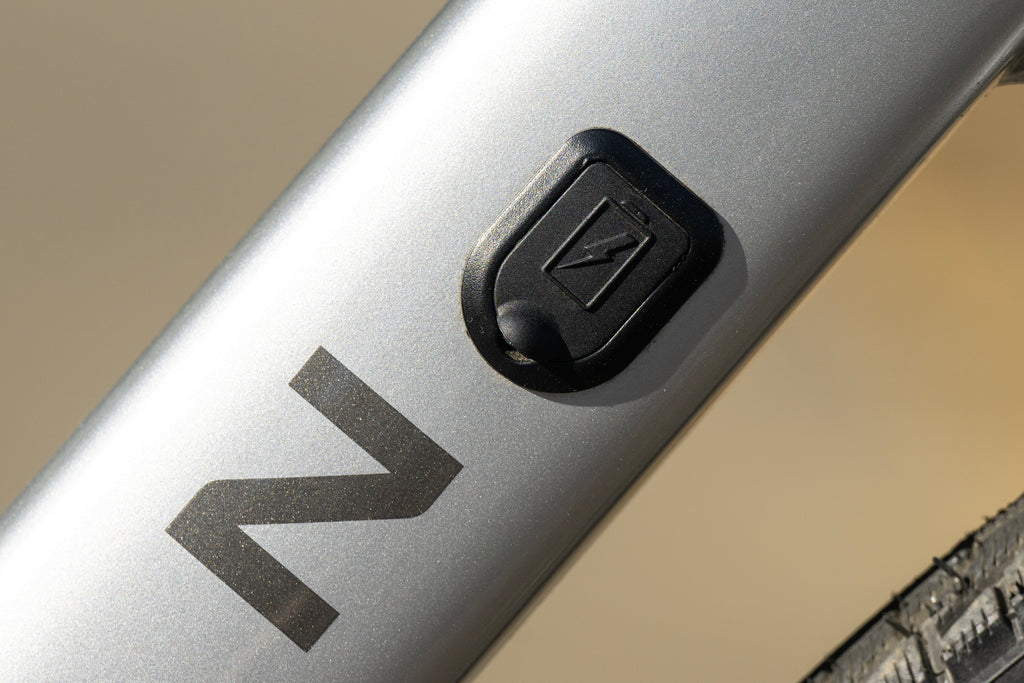

Battery: Bafang 340Wh, 36V, In-tube
|
|

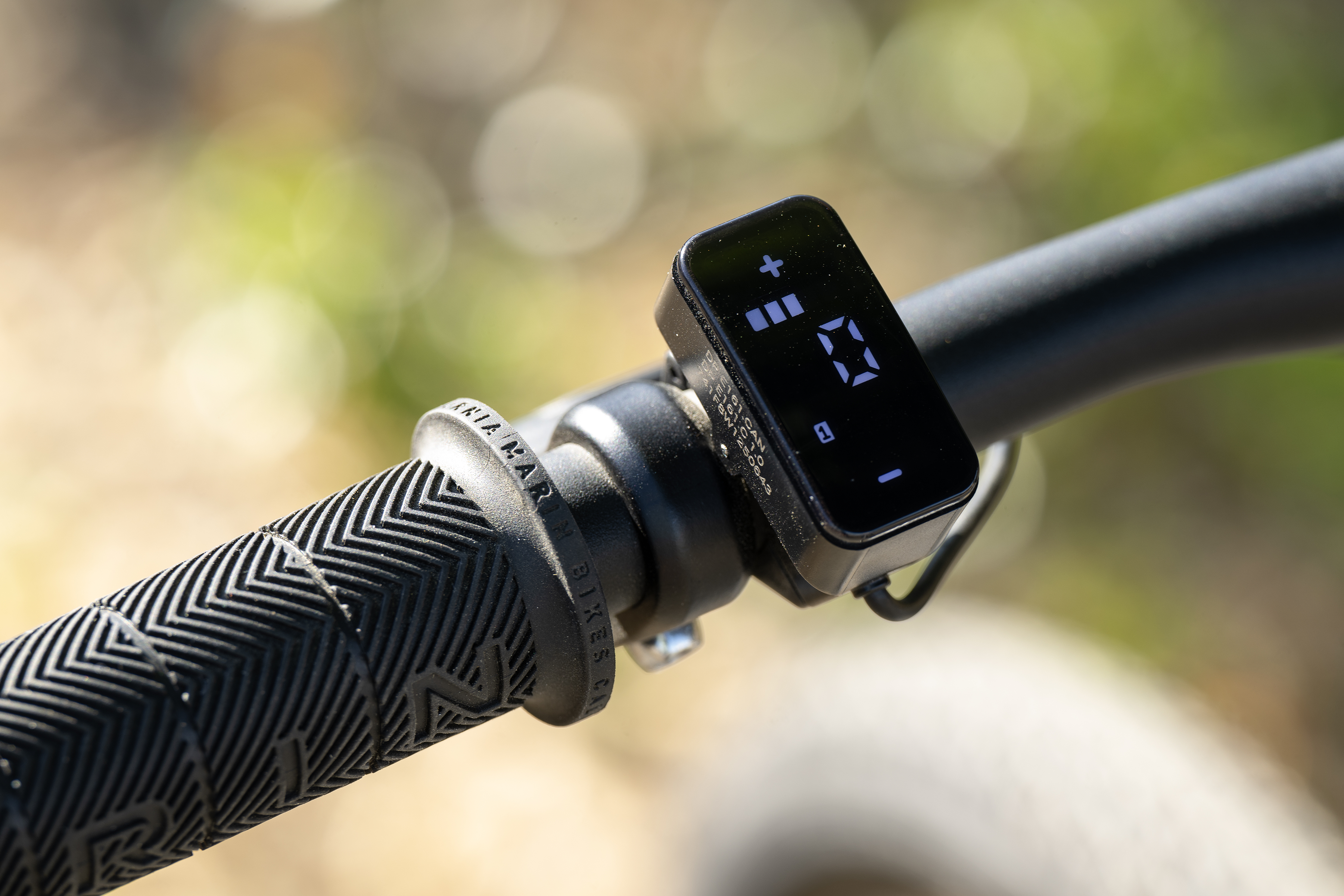

Controller: Handlebar Mount LCD Switch & Display
|
|
Kickstand: Alloy Rear Mount
|
|
Range, Charging Time: 19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
|
