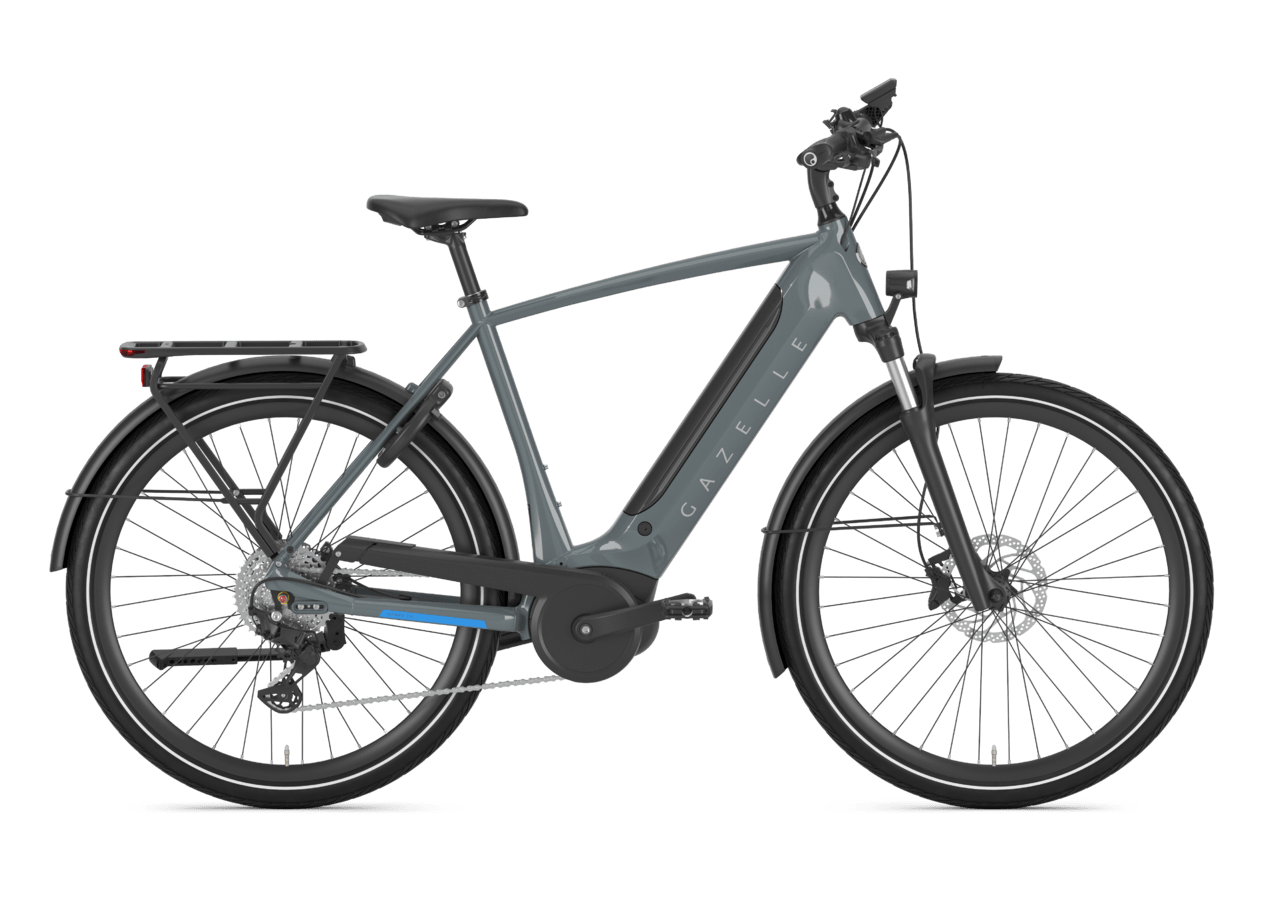

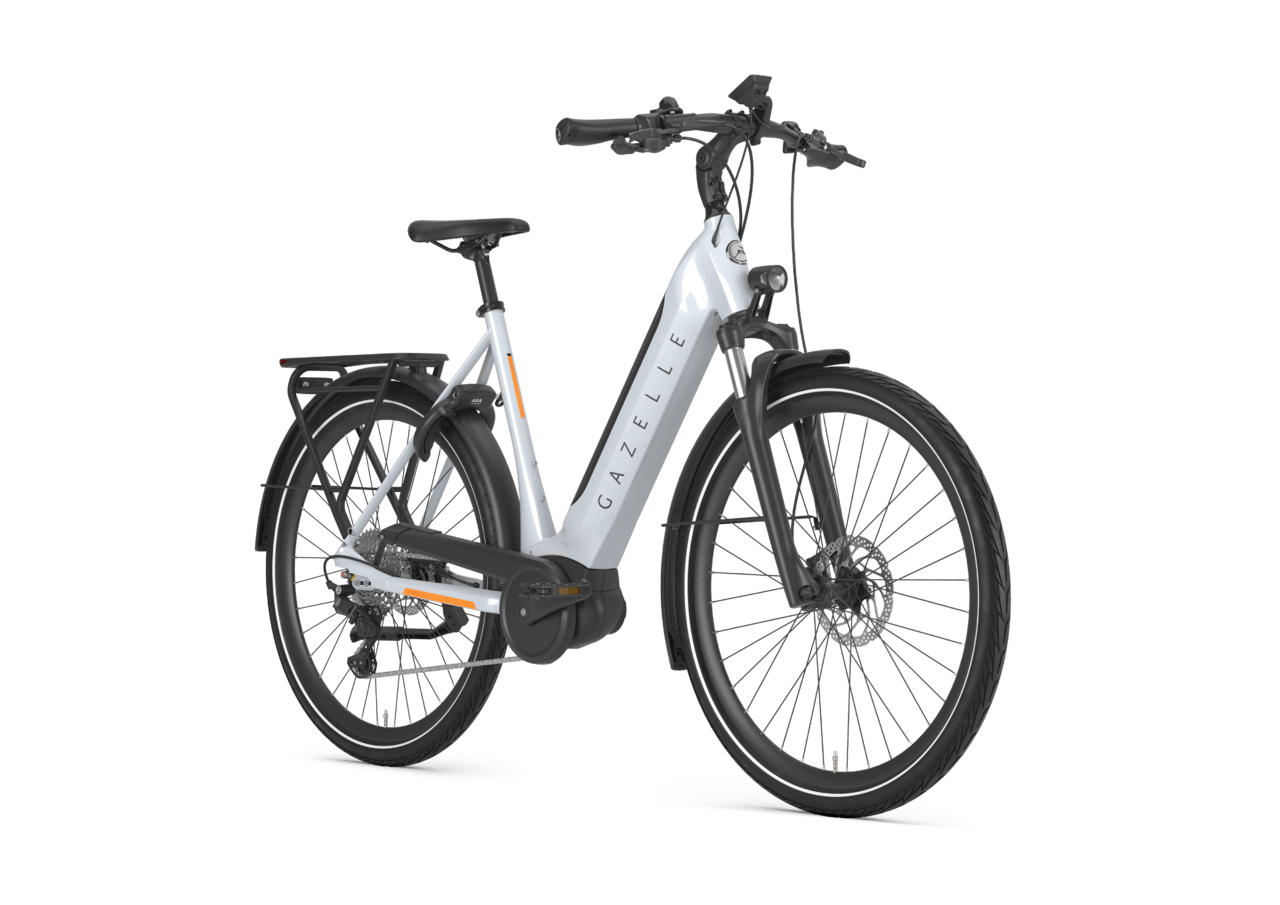

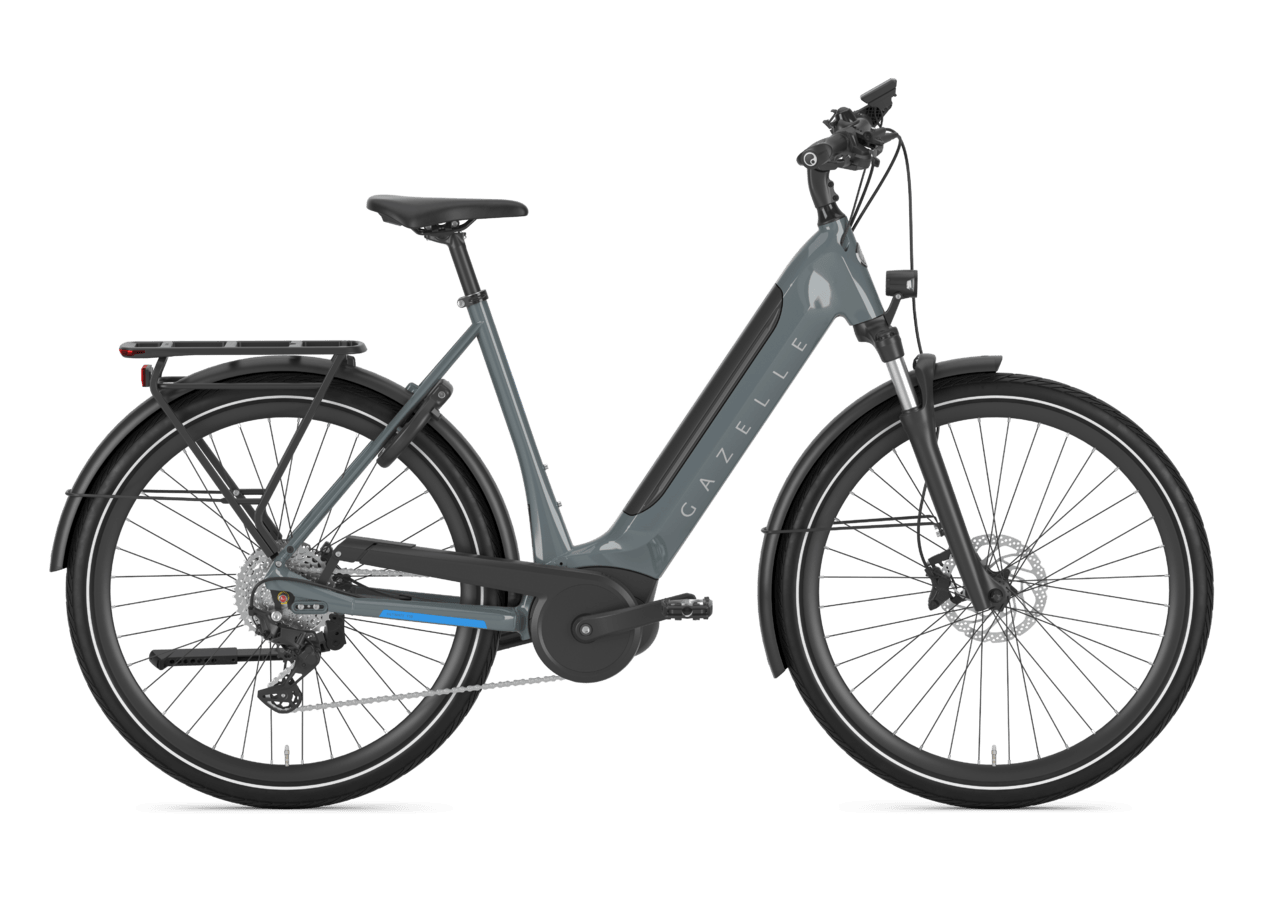

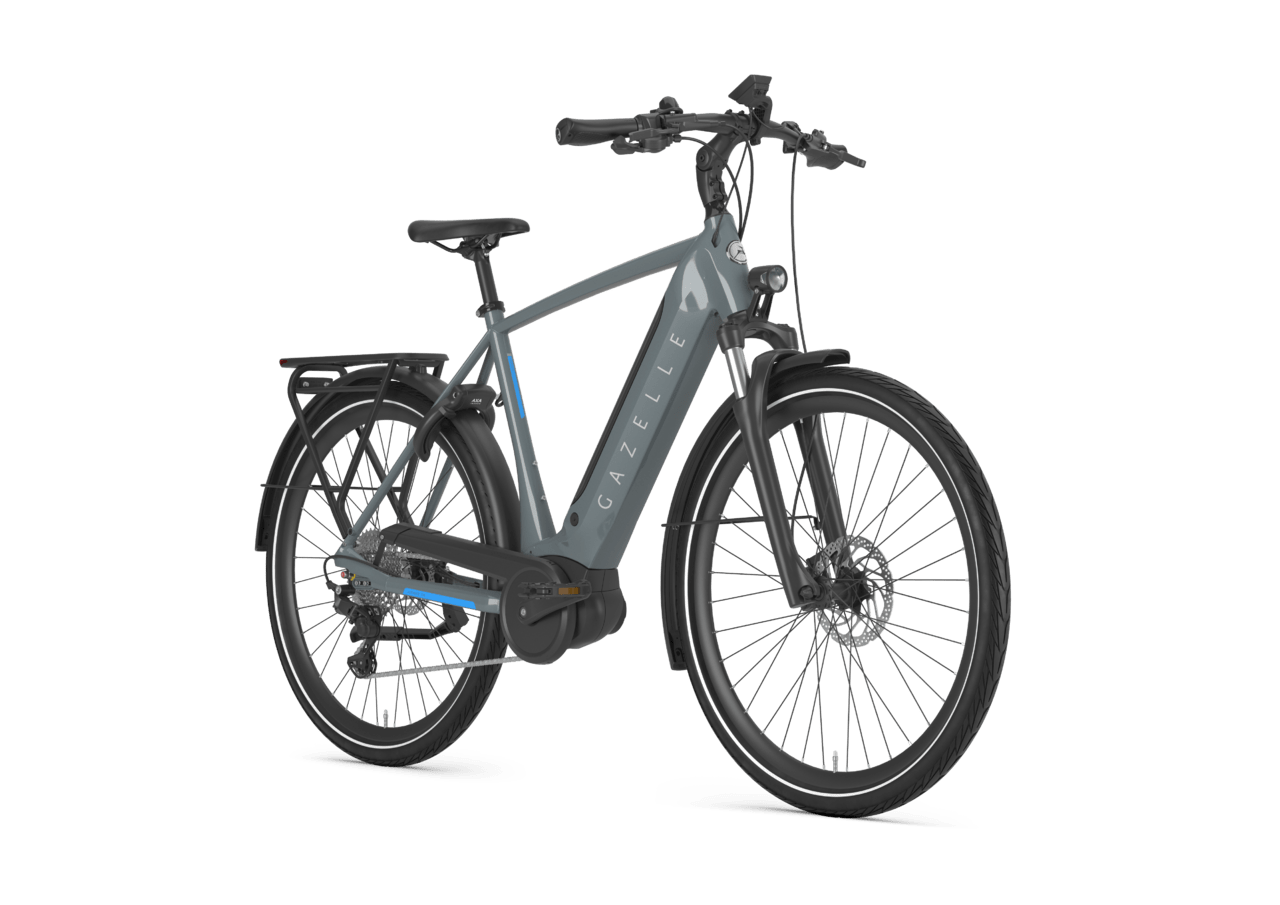

Gazelle Ultimate T10 Smart System

$4,499.00
by Gazelle
Color - Frozen White
Frame
Size

Hop onto the sporty Ultimate T10 and enjoy the fresh air, the wind in your hair, and a smooth ride. With the Bosch Performance Line mid-drive motor and derailleur gears, you can tackle any hill with ease. The integrated battery and motor deliver excellent stability.



Specifications of Ultimate T10

Motor Bosch Performance Line (75Nm), 36V Bosch Smart System / *Option - Bosch Performance Line 3.0 (65 Nm), 36V, 500Wh
Battery Bosch 625Wh / *Option Bosch 500Wh
Display Bosch Kiox 300 / *Option - Bosch Purion
Charger Bosch 4A
Frame Stable aluminium frame with 70.5° headset angle and 71.5° saddle tube angle for sporty cycling characteristics.Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Fork Suntour NVX30 / *Option - Aluminum, springing in headset, lightweight, 40mm travel
Rear Shock Not applicable
Front Brake Disc brake with hydraulic control; Shimano BR-MT410, 4 piston 180 mm / *Option - Shimano BR-MT420, 4 piston 180mm, disc brake with hydraulic control
Rear Brake Disc brake with hydraulic control; Shimano BR-MT410, 2 piston 160 mm / *Option - Shimano BR-MT420, 4 piston 160mm, disc brake with hydraulic control
Rear Derailleur Shimano Deore
Shift Levers Shimano Deore
Chain KMC extra strong, e-bike-specific
Cassette Spec not provided
Crankset Miranda Delta
Chain Ring 38, 11-42 / *Option - 38, 11-36
Chain Guard Plastic / *Option - Aluminum
Rims Ryde Dutch
Front Hub Shimano
Rear Hub Shimano Deore
Front Tire Schwalbe Energizer Plus, 50-622 / *Option - Schwalbe Energizer Plus, 47-622
Rear Tire Schwalbe Energizer Plus, 50-622 / *Option - Schwalbe Energizer Plus, 47-622
Handlebar Aluminum slightly curved model
Stem Steplessly adjustable
Headset Spec not provided
Grips Ergon GP1-L, ergonomic
Saddle Selle Royal Essenza Plus / *Option - Selle Royal Loire
Seatpost Fixed
Pedals Spec not provided
Front Light Axa Blue Line 50, LED headlamp, 50 lux, on/off switching via display
Rear Light Herrmans H-Cargo, LED battery supply, on/off switching via display
Kickstand Drop-down rear stand, Ursus Mooi
Rear Carrier Aluminum
Fenders Aluminum
Bell Handlebar bell Decibel XXL
Lock AXA Defender, ART ** certified

How do you know what size of bike you should buy?

A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.

For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.

Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
