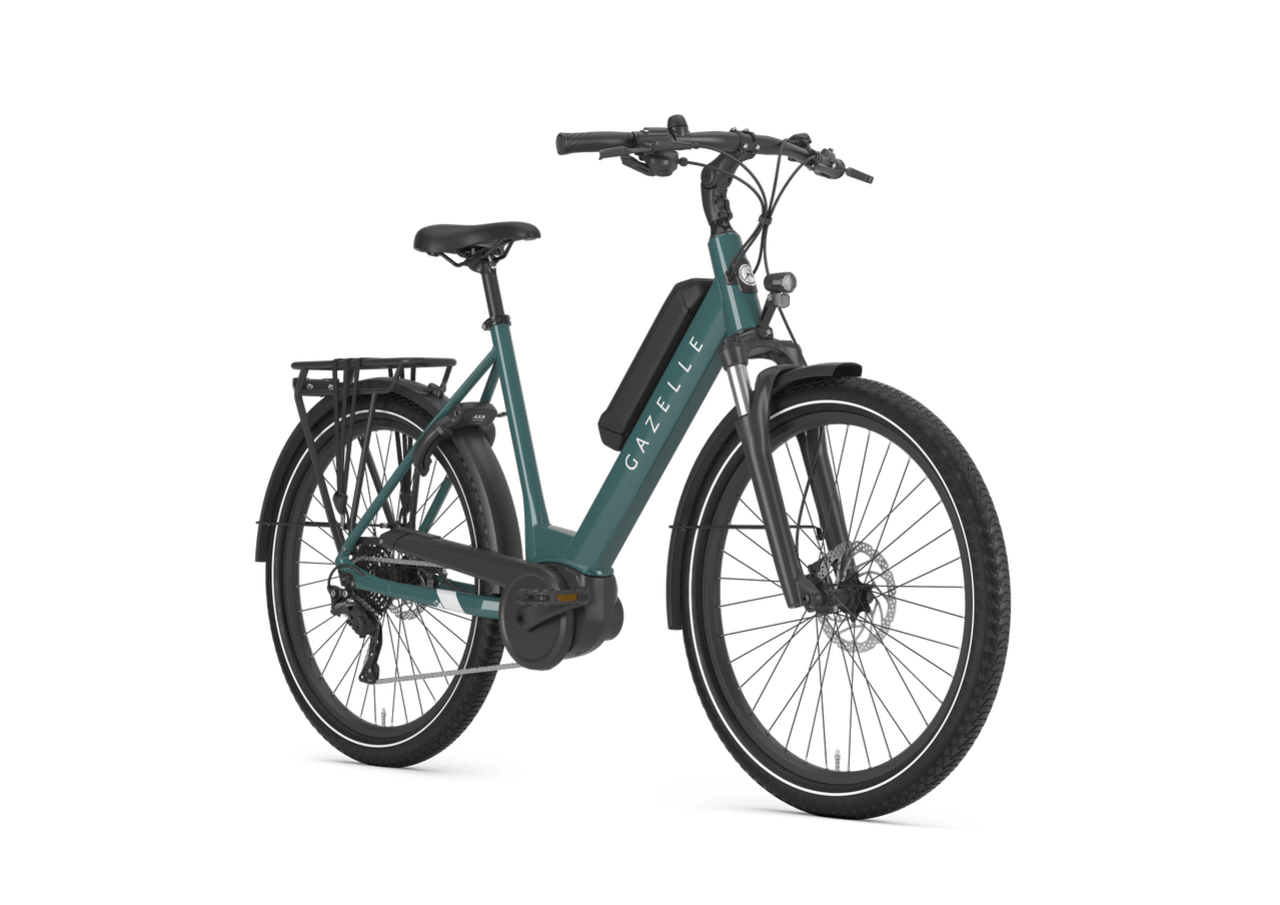

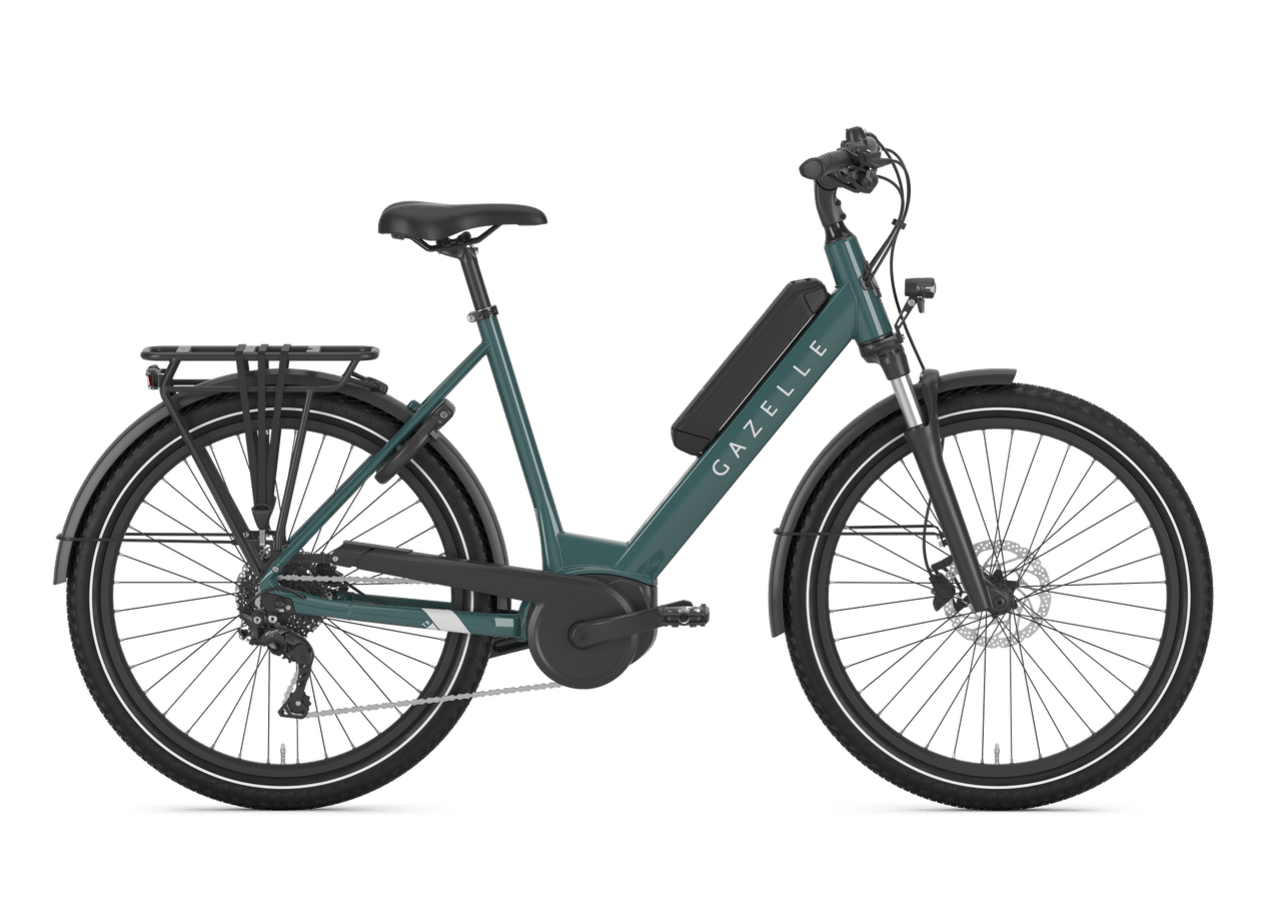

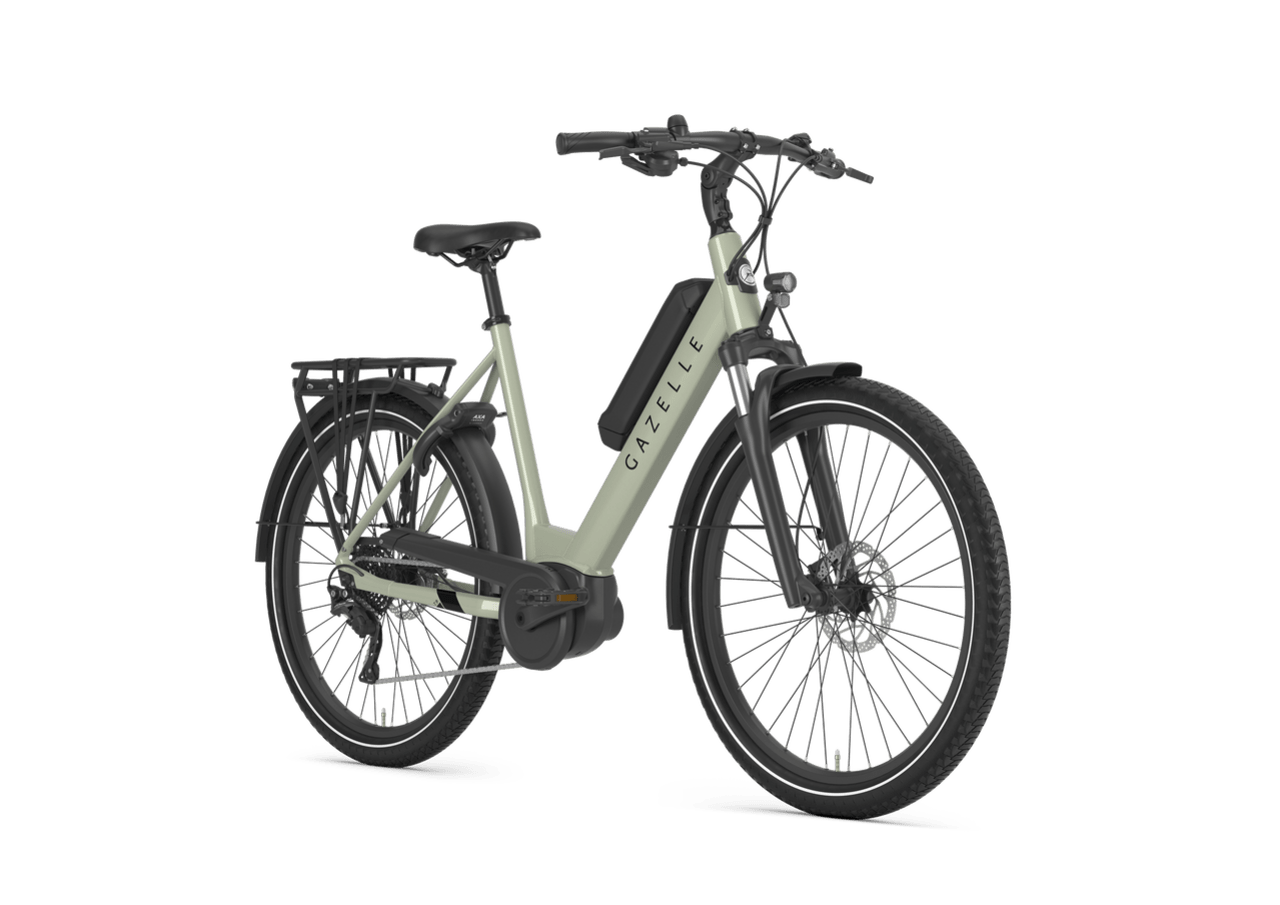

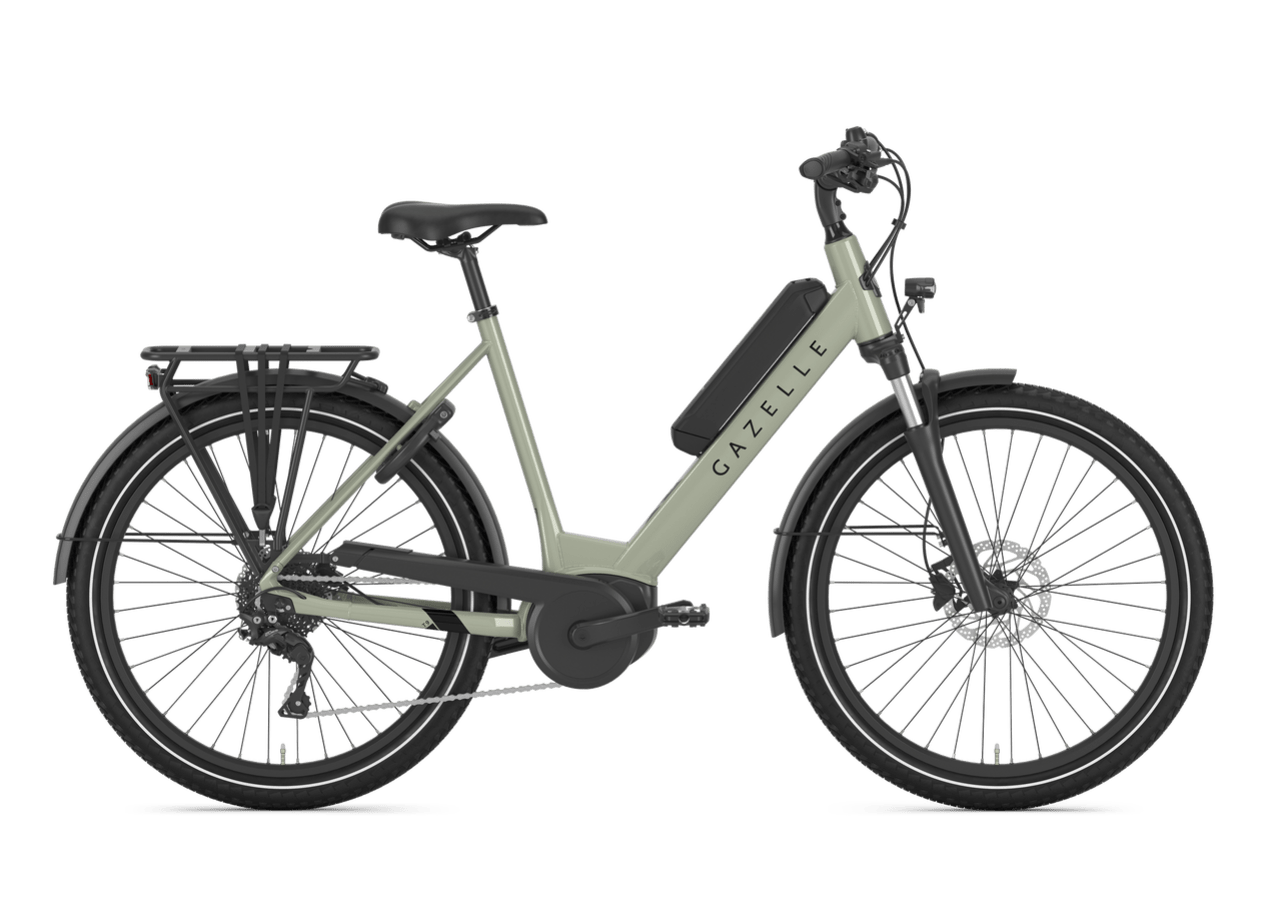

The reimagined Gazelle Medeo T9 City is the perfect introduction to the world of urban mobility and ebike life. Our most affordable and lightweight ebike has been refreshed and updated to add new comforts and convenience while maintaining the sporty spirit of the original.
Bosch Smart System Active Line
With the Bosch Active Line (40 Nm) you can cycle effortlessly through traffic. The low positioning gives the bike excellent road-holding and maneuverability. This motor is highly suited for the city or gently hilly terrains.
Modern, efficient energy source

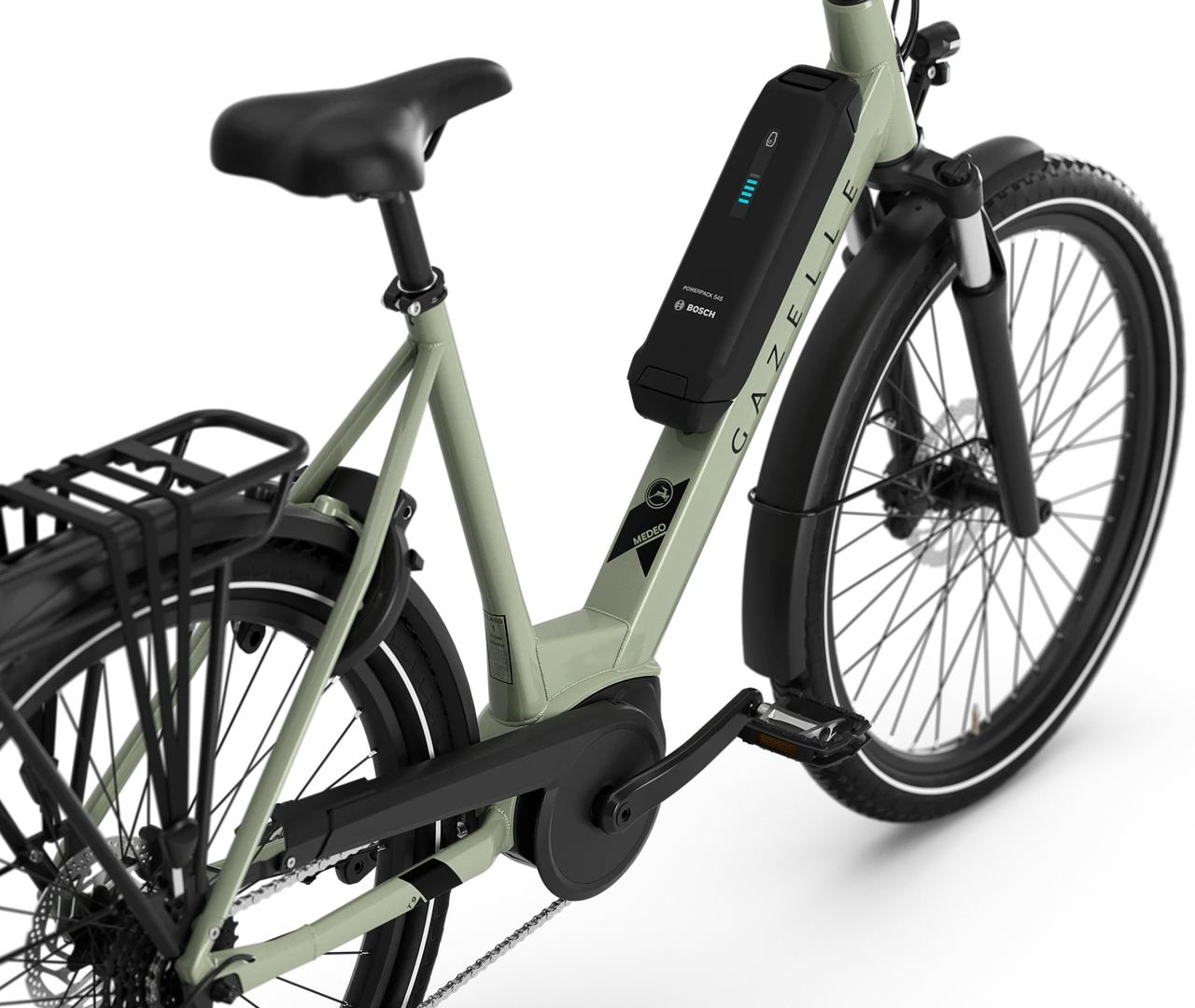

Bosch's lithium-ion batteries are among the most advanced on the market. The intelligent battery management system protects them against overheating, overloading and complete discharge, guaranteeing a long battery life. The high energy density and efficient operation ensure optimum range. With the 400-Wh battery, you'll always have enough range. The battery is reliably secured with a lock on your frame and is easily removed using your bike key. Convenient, as you can charge the battery either on or off the bike.
Specifications of Medeo T9 City
Motor Bosch Smart System Active Line (40Nm), 36V
Battery 400Wh
Display Bosch Purion LCD
Charger Bosch 2A
Frame Stable lightweight aluminium sloping frame with 70.5°headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame
Fork Suntour Suntour MOBIE A32 DS, telescope, spiral spring
Rear Shock Not applicable
Front Brake Disc brake with hydraulic control; Shimano BR-MT200, 2 piston 180 mm
Rear Brake Disc brake with hydraulic control; Shimano BR-MT200, 2 piston 160 mm
Rear Derailleur Shimano Alivio M3100
Shift Levers Shimano Acera
Chain Special for e-bike
Cassette 11-36
Crankset Aluminum
Chain Ring 38 x 11-36
Chain Guard Plastic
Rims Ryde Big Bull, Double-walled aluminium for extra strong and efficient cycling performance
Rear Hub Spec not provided
Front Hub Shimano
Front Tire Continental Contact Plus, 62-584
Rear Tire SContinental Contact Plus, 62-584
Handlebar Aluminum slightly curved model
Stem Steplessly adjustable, with toolbox
Headset Spec not provided
Grips Herrmans DD36
Saddle DDK, sportive, 27.2mm
Seatpost Fixed
Pedals Spec not provided
Front Light Axa Compactline 35, LED headlamp, 35 lux, on/off switching via display
Rear Light Axa Blueline, LED battery supply, on/off switching via display
Kickstand Drop-down rear stand, Ursus Mooi
Rear Carrier Aluminum MIK system carrier
Fenders Stainless steel
Bell Gazelle Compact bell
How do you know what size of bike you should buy?
A good place to start is using the sizing charts included for each bike on the info page. If you're in the middle of the recommended height range for a specific size then usually that's the correct one to go with. If you find yourself overlapping sizes at either the top or bottom of the height recommendation than sizing up or down could be a consideration.
For more relaxed fitting "city-style" bikes sizing is less crucial because often they will have adjustable stems and offer more overlap in sizing. Smaller bikes will be slightly easier to manage when starting and stopping while larger bikes will feel more stable when riding. Most often we recommend sizing down in this category.
Bikes that have a more aggressive riding position i.e. road, gravel and mountain bikes sizing is more important. In these categories we usually look closely at 3 numbers, reach, stack, and top-tube length.
